APPLICATION & DESIGN EXAMPLE (TELESCOPIC)

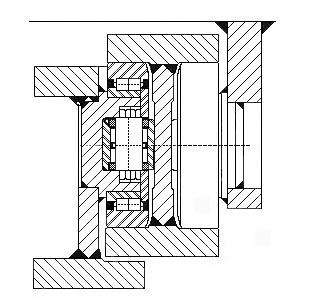

Typical arrangement of combined roller bearings and channel sections. This design is slightly unusual as the "I" sections were welded to suit the non-standard size of the combined roller bearings.

We can offer bespoke combined roller bearings & rails. Please enquire.

**Further application examples can be found here - September 2017**

telescopic combined roller bearings
