HOME > MOTION GUIDANCE > STANDARD > CSH CARRIAGE

MOTION GUIDANCE - STANDARD CARRIAGE (CSH)

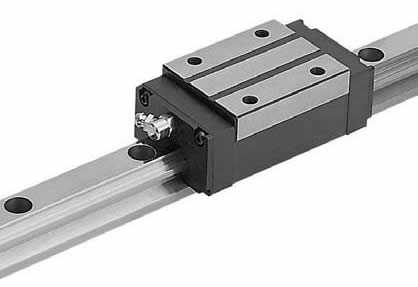

CSH carriage linear motion guidance   motion guidance standard carriage CSH

Standard carriage to suit C or D type track.

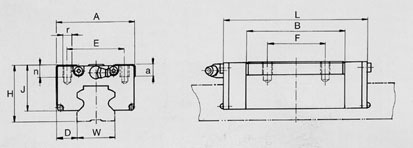

Dimension A H ±0.04 W D ±0.04 L B E F r n J a Weight
(kg)
CSHa-15H1 34 28 15 9.5 63.8 45.2 26 26 M4 5 25.0 10 0.20
CSH-20H1 44 30 20 12.0 82.0 50.8 32 36 M5 8 26.5 8 0.33
CSH-25H1 48 40 23 12.5 92.2 59.5 35 35 M6 8 33.5 12 0.56
CSH-30H1 60 45 28 16.0 104.9 70.4 40 40 M8 10 38.0 12 0.98
CSH-35H1 70 55 34 18.0 115.8 80.4 50 50 M8 12 47.5 15 1.63
CSH-45H1 86 70 45 20.5 142.7 98.0 60 60 M10 17 60.0 15 2.96
CSH-55H1 100 80 53 23.5 169.0 118.0 75 75 M12 18 67.0 18 4.52
CSH-65H1 126 90 63 31.5 198.0 147.0 76 70 M16 20 72.5 23 7.43

Loads C (N) C0 (N) MR MN MG
CSHa-15H1 8,330 13,426 16 17 17
CSH-20H1 14,210 25,088 22 18 18
CSH-25H1 20,972 39,200 36 32 31
CSH-30H1 29,204 53,802 60 50 49
CSH-35H1 38,808 68,698 96 75 73
CSH-45H1 61,642 110,662 202 159 157
CSH-55H1 91,209 156,918 344 274 270
CSH-65H1 147,980 240,100 629 495 484

Moments are measured in kgf.m. (Multiply by a factor of 10 to get approximate moments in Nm).
C is the dynamic load in Newtons & C0 is the static load.
