SMALL SERIES - RAILS & END STOPS

small series rails for corrosion resistant linear sliding system



There are two types of rail:

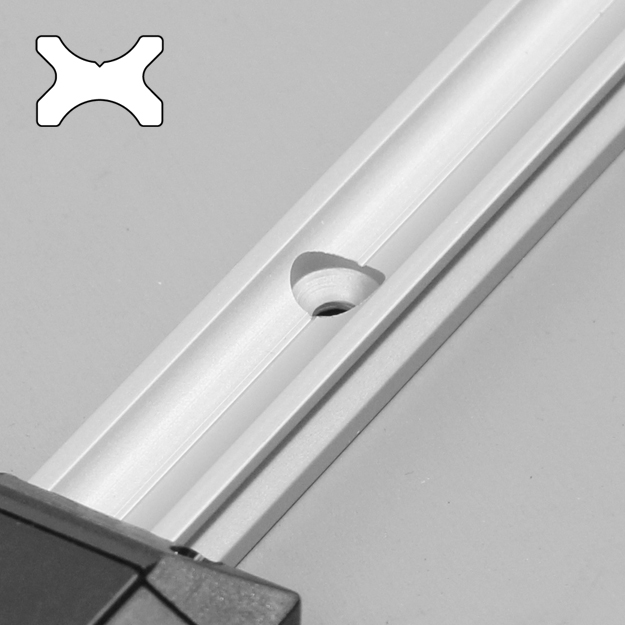

Anodised (silver) or Hard Anodised with PTFE coating (black)

Max length 3500mm in one piece.
Other lengths available: 1500mm and 2000mm

Both short and long carriages are available for this series.

Small Rail Part Numbers:
Anodised - SRA
Hard Anodised - SRHA

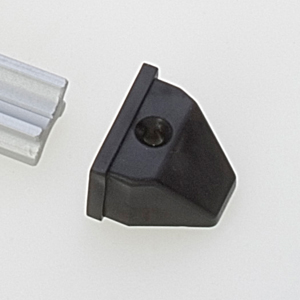

End Stops - SES (scroll down for drawing)

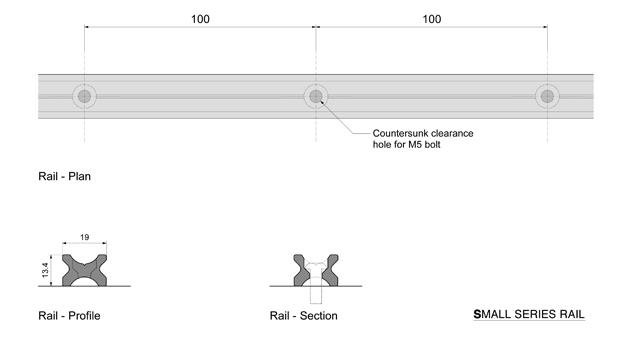

srha and sra rail for exterior corrosion resistant linear sliding systems

___________________________________________________________________________

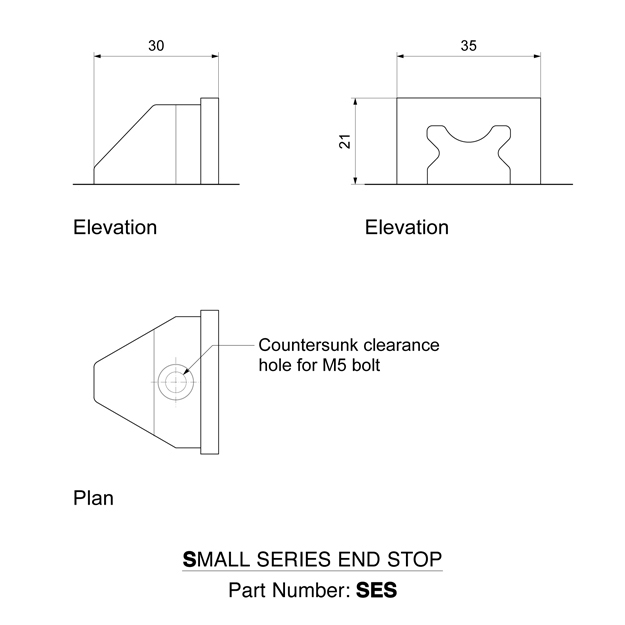

ses end stops dimensions end stops for exterior corrosion resistant slides

Spare balls are also available on request.
