HEAVY DUTY COMBINED BEARING ASSEMBLY
The 3.0xx series is designed to give maximum resistance against dirt for applications such as brick and block making, steel works and mining. The radial bearing can be relubricated from the side of the mounting plate whilst the axial ball bearings are lubricated for life.
The height of the assembly can be adjusted using shims.
Calculate which size you need.
Read our technical information on Combined Roller Bearings or view our application examples.
En Français? Voir notre catalogue ici.

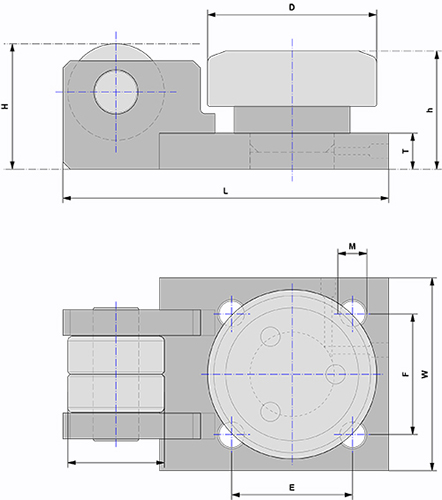

| Part Number | D | H | h | T | L | W | E | F | M | Weight | Profile |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.055 | 70.1 | 52 | 49 | 15 | 135 | 80 | 50 | 50 | M12 | 2.3 | 2867 |
| 3.056 | 77.7 | 52 | 49 | 15 | 135 | 80 | 50 | 50 | M12 | 2.6 | 2810 |
| 3.058 | 88.4 | 64 | 61 | 20 | 188 | 120 | 90 | 90 | M16 | 5.5 | 2811 |
| 3.061 | 107.7 | 75 | 71.5 | 20 | 193 | 120 | 90 | 90 | M16 | 6.8 | 2862 |
| 3.062 | 123 | 76 | 71.5 | 20 | 240 | 120 | 80 | 80 | M16 | 9.6 | 2891 |
| 3.063 | 149 | 78.4 | 73.5 | 20 | 265 | 150 | 100 | 100 | M16 | 13.6 | 2757 |
All dimensions are in mm and loads are in kN. Weight is in kg.
