MEGI BARS (FLANGED):
For large orders, these metal-rubber anti-vibration bars can be supplied with metal plates of a different thickness 's' and with a thinner rubber layer.

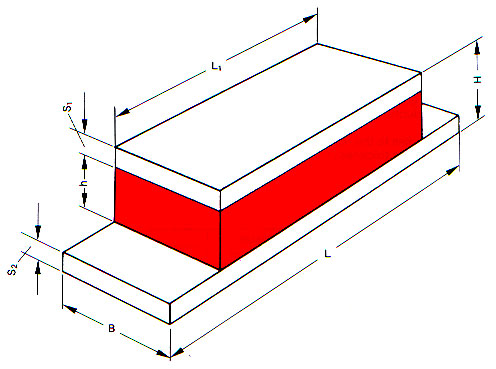

Dimensions (mm)
|
Compression Loads |
Shear Loads |
|||||||||
Part Number |
B |
H |
h |
s1 |
s2 |
L |
L1 |
Spring rate (N/mm) |
Max Load (kN) |
Spring rate (N/mm) |
Max Load (kN) |
711023 |
50 |
40 |
20 |
5 |
8 |
200 |
150 |
4000 |
8 |
300 |
1.5 |
711025 |
50 |
40 |
20 |
8 |
8 |
270 |
220 |
7100 |
15 |
500 |
2 |
711019 |
100 |
60 |
30 |
10 |
15 |
480 |
360 |
18200 |
59 |
1000 |
7 |
