MEGI FLEX DISCS:
Megi flex discs are supplied in a highly elastic natural-rubber with a Shore hardness of approx. 60 degrees. The rubber used is not oil-resistant, but if oil is present the surface can be treated to give some protection against oil. The operating temperature may be as high as 80 degrees. Higher temperatures affect the service life.

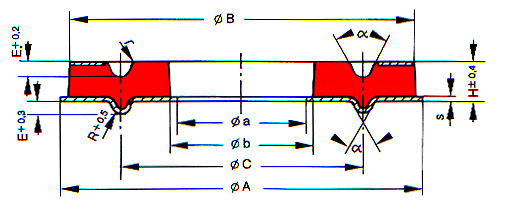

Part Number |
A |
a |
B |
b |
C |
H |
s |
E |
R |
r |
Max Load (N) |
Deflection (mm) |
741473 |
65 |
26 |
62 |
30 |
46 |
11 |
1 |
2.5 |
2 |
0.5 |
6850 |
1.8 |
741481 |
95 |
45 |
90 |
50 |
70 |
10.5 |
1.5 |
2.5 |
2.5 |
1 |
7850 |
1.4 |
741444 |
100 |
35 |
90 |
40 |
64 |
27.5 |
1.5 |
3.5 |
3 |
1 |
9800 |
6.4 |
741401 |
110 |
30 |
102 |
38 |
76 |
20.8 |
1.75 |
3.5 |
3 |
1 |
13750 |
3.7 |
741409 |
110 |
30 |
102 |
38 |
76 |
25.8 |
1.75 |
3.5 |
3 |
1 |
12750 |
5.1 |
741493 |
110 |
40 |
102 |
44 |
76 |
15.8 |
1.75 |
3.5 |
3 |
1 |
14200 |
2.4 |
741488 |
130 |
55 |
123 |
60 |
90 |
16 |
2 |
5 |
4 |
2 |
17150 |
2.1 |
741433 |
153 |
55 |
145 |
60 |
102 |
16 |
2 |
5 |
4 |
2 |
27950 |
1.9 |
741472 |
153 |
55 |
145 |
60 |
102 |
30 |
2 |
5 |
4 |
2 |
29450 |
6.2 |
741432 |
164 |
60 |
156 |
64 |
110 |
23 |
2 |
4 |
4 |
2 |
33350 |
3.6 |
741436 |
210 |
95 |
200 |
100 |
154 |
20 |
2 |
6 |
6 |
1.2 |
45150 |
2.6 |
741434 |
240 |
70 |
230 |
76 |
154 |
25 |
2 |
6 |
5 |
2 |
60800 |
2.9 |
741483 |
320 |
154 |
310 |
160 |
235 |
18 |
3 |
7 |
6 |
2 |
56900 |
1.4 |
