TRANSFER TABLES:
PDF Catalogue of Linear Bearings

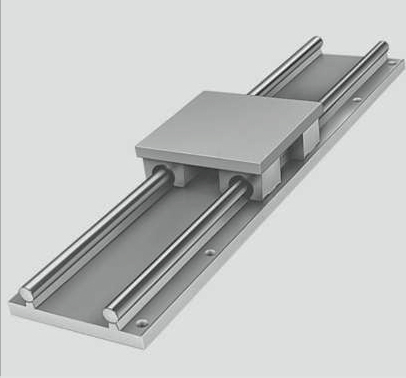

This ready to mount sliding system reduces the cost of construction and the number of components involved.
 |
The table consists of a steel plate and four open type aluminium sets (AE37-...). The base plate and the shaft supports are also manufactured from steel. The special features of this assembly are minimum radial clearance, high rigidity and easy maintainance. The AT unit comes with a ball screw drive and bellows cover as standard. Other non standard drives and lengths can be supplied to your drawings. If corrosion resistance is required, these tables are also available manufactured entirely from stainless steel. |
| Part Number | d | A | B | C | L | E | F | N | G | h | K | M | O | P | R | S | T | V | W | Travel | Ball Screw |
| UT12-016 | 16 | 150 | 155 | 65 | 650 | 135 | 155 | 15 | 41 | 30 | 104 | 46 | 98 | 6.6 | 11 | 500 | |||||
| AT12-016 | 16 | 150 | 155 | 65 | 650 | 40 | 155 | 15 | 18 | 32.5 | 30 | 70 | 6 | 780 | 98 | 35 | 120 | 10 | 52 | 400 | 16X5 |
| UT12-025 | 25 | 220 | 225 | 95 | 925 | 195 | 175 | 25 | 56.2 | 45.2 | 138 | 64 | 140 | 9 | 19 | 700 | |||||
| AT12-025 | 25 | 220 | 225 | 95 | 925 | 40 | 175 | 25 | 21 | 49 | 40 | 105 | 8 | 1115 | 140 | 40 | 107.5 | 10 | 52 | 700 | 16X5 |
| UT12-040 | 40 | 320 | 325 | 140 | 1000 | 285 | 190 | 25 | 88 | 69 | 192 | 102 | 210 | 9 | 26 | 700 | |||||
| AT12-040 | 40 | 320 | 325 | 140 | 1000 | 50 | 190 | 25 | 23 | 70 | 40 | 115 | 10 | 1210 | 210 | 45 | 105 | 16 | 66 | 700 | 25X5 |
Loads:
| Part Number | Load C (kN) | Load C0 (kN) | Weight (kg) |
| UT12-016 | 1.8 | 2.7 | 16 |
| AT12-016 | 1.8 | 2.7 | 22 |
| UT12-025 | 5.8 | 9 | 50 |
| AT12-025 | 5.8 | 9 | 60 |
| UT12-040 | 10.9 | 15.6 | 126 |
| AT12-040 | 10.9 | 15.6 | 147 |
