HG Series Motion Guidance Systems - HGH Carriage

HGH motion guidance carriages

click to see photo

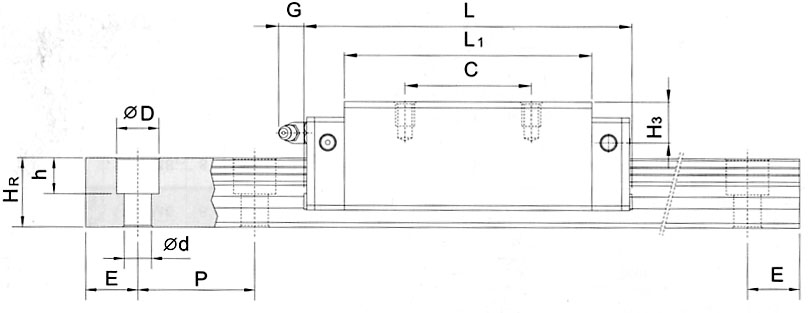

Part Number H H1 N W B B1 C L1 L G M x l T WR HR D h d P E
HGH15
28
4.3
9.5
34
26
4
26
39.4
61.4
5.3
M4X5
6
15
15
7.5
5.3
4.5
60
20
HGH20
30
4.6
12
44
32
6
36
50.5
75.6
12
M5X6
8
20
17.5
9.5
8.5
6
60
20
HGH25
40
5.5
12.5
48
35
6.5
35
58
83
12
M6X8
8
23
22
11
9
7
60
20
HGH30
45
6
16
60
40
10
40
70
97.4
12
M8X10
8.5
28
26
14
12
9
80
20
HGH35
55
7.5
18
70
50
10
50
80
112.4
12
M8X12
10.2
34
29
14
12
9
80
20
HGH45
70
9.5
20.5
86
60
13
60
97
138
12.9
M10X17
16
45
38
20
17
14
105
22.5



HGH carriage

Part Number

Mounting Bolt for Rail

C

(kN)

C0

(kN)

Mr

(kNm)

Mp

(kNm)

My

(kNm)

Weight of Carriage (kg)

Weight of Rail
(kg/m)
HGH15CA
M4X16
11.38
16.97
0.12
0.10
0.10
0.18
1.45
HGH20CA
M5X16
17.75
27.76
0.27
0.20
0.20
0.30
2.21
HGH25CA
M6X20
26.48
36.49
0.42
0.33
0.33
0.51
3.21
HGH30CA
M8X25
38.74
52.19
0.66
0.53
0.53
0.88
4.47
HGH35CA
M8X25
49.52
69.16
1.16
0.81
0.81
1.45
6.30
HGH45CA
M12X35
77.57
102.71
1.98
1.55
1.55
2.73
10.41

HGH moments
