MEGI BUSHES:

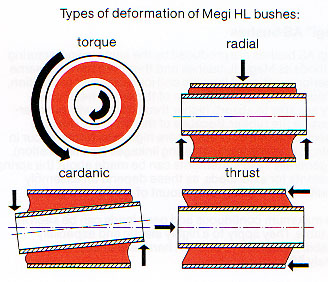

Megi Bushes are anti-vibration mounts that can be subjected to radial, axial and torsional loads without the rubber being displaced in relation to the metal parts. A small cardanic angular displacement of the axis of the inner tube in relation to that of the outer tube or vice versa, is possible. The bearings are, however, relatively resistant to such angular displacement, the resistance depending on the thickness, hardness and length of the rubber part. The maximum continuous and peak radial, thrust and torsional loads can be seen in the table. They apply to a highly elastic and especially durable rubber with a Shore hardness of approximately 50º.
 |
 |
Dimensions |
Radial Load |
Axial Load |
||||||
Part Number |
A |
B |
C |
D |
Fr (N) |
cr (N/mm) |
Fa (N) |
ca (N/mm) |
735009 S2 |
10 |
24 |
14 |
17 |
200 |
491 |
160 |
103 |
735035 |
12 |
26 |
17.5 |
24 |
690 |
1962 |
680 |
226 |
735067 |
14 |
30 |
67 |
76 |
3920 |
8829 |
2310 |
765 |
735043 |
18 |
34 |
32 |
36 |
1570 |
3237 |
830 |
417 |
735022 |
20 |
45 |
59.5 |
62.5 |
3920 |
4905 |
910 |
608 |
735040 |
25 |
50 |
65.5 |
67.5 |
6380 |
6082 |
760 |
755 |
735078 |
30 |
55 |
89.5 |
94 |
13730 |
16677 |
2600 |
1177 |
735038 |
40 |
75 |
57 |
70 |
5890 |
4611 |
4510 |
697 |
735083 |
50 |
80 |
95 |
100 |
14720 |
14715 |
3430 |
1373 |
Torsion |
|||||
Max Static Loads |
Spring Constant |
Max Peak Loads |
|||
Part Number |
angle |
Torque (Nm) |
c (Nm/degree) |
angle |
Torque (Nm) |
735009 S2 |
15 |
1.3 |
0.09 |
30 |
2.6 |
735035 |
13 |
4.4 |
0.338 |
26 |
9.0 |
735067 |
15 |
19.0 |
1.24 |
30 |
37.0 |
735043 |
14 |
12.0 |
0.9 |
28 |
25.0 |
735022 |
15 |
30.0 |
2.0 |
30 |
60.0 |
735040 |
15 |
60.0 |
3.9 |
30 |
120.0 |
735078 |
13 |
100.0 |
7.6 |
26 |
200.0 |
735038 |
14 |
130.0 |
9.1 |
28 |
260.0 |
735083 |
11 |
260.0 |
23.2 |
22 |
510.0 |
