EXAMPLES OF MACHINES USING COMBINED ROLLER BEARINGS

Click on photos to enlarge

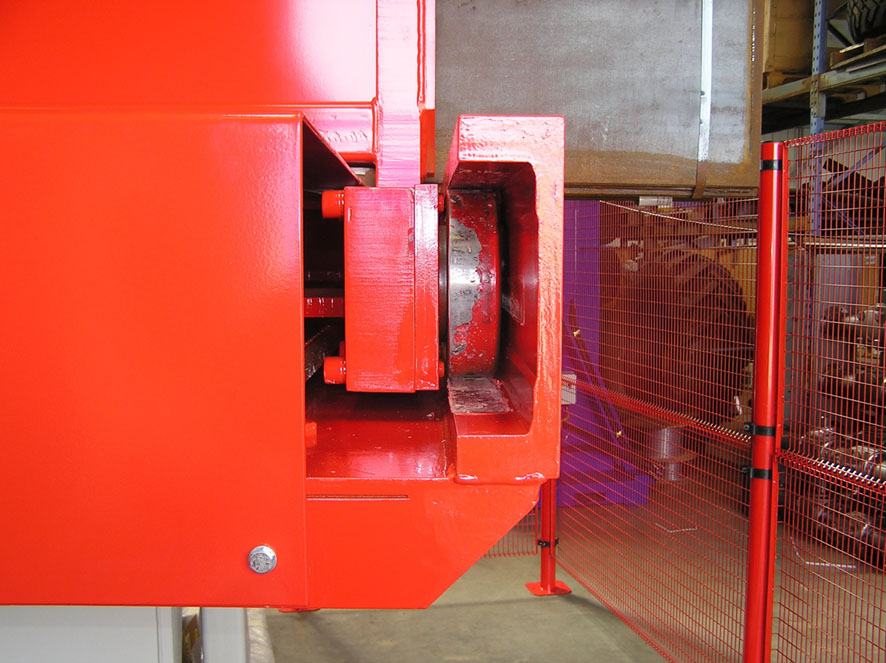

jumbo combined roller bearing

This photo shows a jumbo bearing welded to a mounting plate running inside a jumbo C section



combined bearings used on a bogie

This bogie has 6 standard combined bearings mounted on it (3 each side).



Palletising Machine

This palletising machine uses jumbo combined roller bearings.

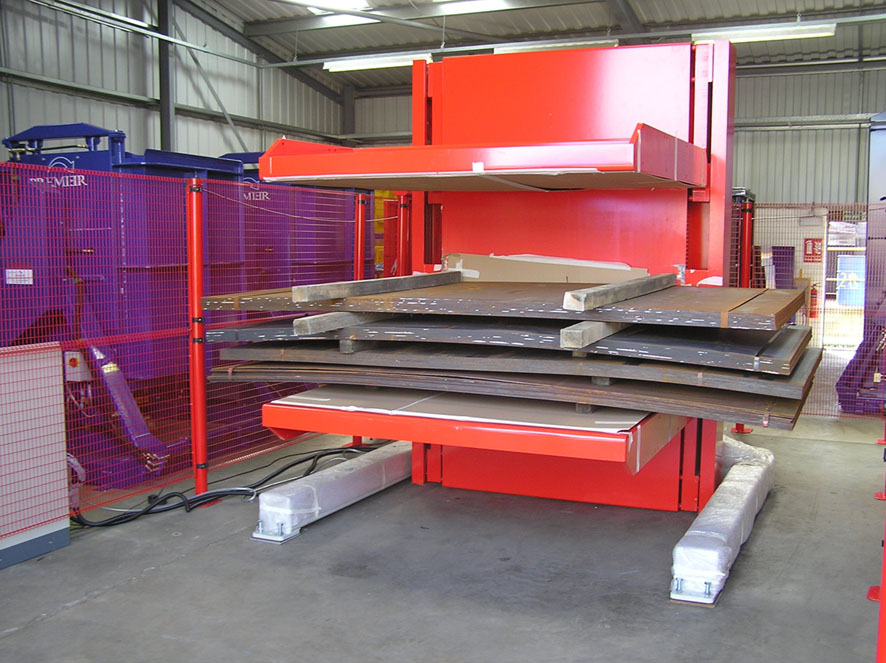

palletising machine with combined roller bearings

1.The machine is loaded

palletising machine with combi bearings

2.The jaws clamp the load

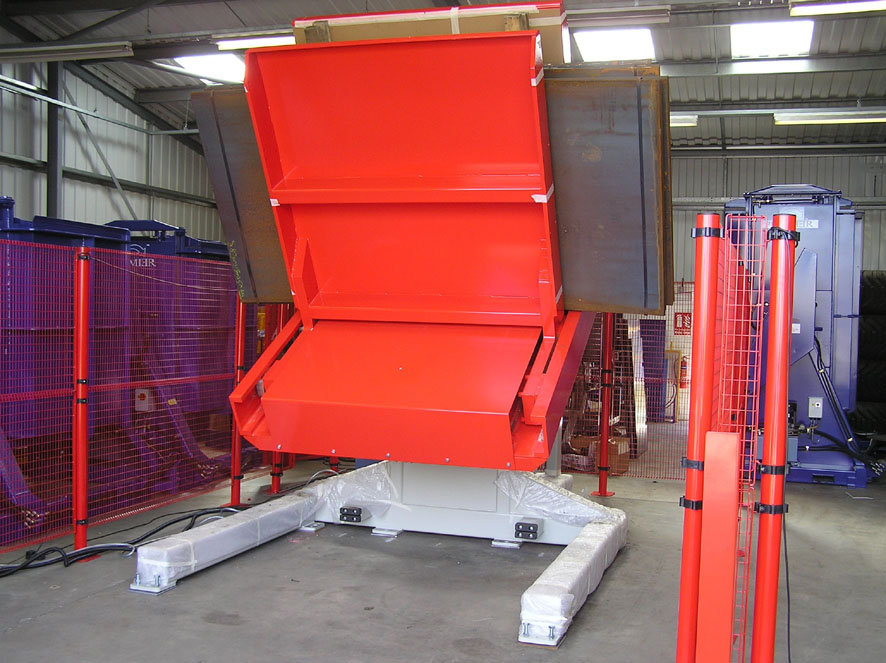

pallet turner with combined roller bearings

3. The machine tips back, rotates & lowers, turning the load upside down



If you wish to be put in touch with a manufacturer who produces equipment using our products, contact Kate, Gerry or Matt on 01908 511733.

Or email sales@euro-bearings.com
