RING ELEMENTS:
Megi annular buffers are ring shaped rubber-metal anti-vibration mounts. Centering is effected by a collar on one of the two metal plates. They can be subjected to compression and shear. Megi annular buffers are used for flexible mountings where tensile forces are experienced. They are used in pairs precompressed against each other. Supplied in 60 shore. Other mixes available on request.

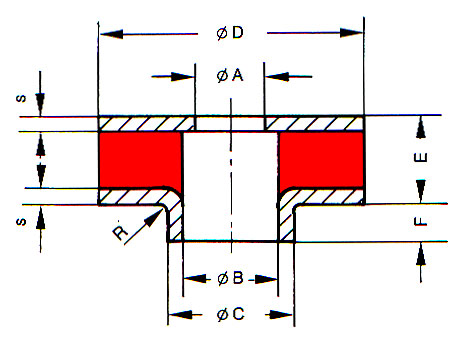

Dimensions (mm)
|
Compression Loads |
Shear Loads |
||||||||||
Part Number |
D |
A |
B |
C |
E |
F |
s |
R |
Spring rate (N/mm) |
Max Load (N) |
Spring rate (N/mm) |
Max Load (N) |
741029 |
36 |
6.2 |
- |
15 |
10 |
6 |
1 |
1 |
1350 |
1600 |
110 |
300 |
741027 |
36 |
8.5 |
12 |
18 |
10 |
4 |
1 |
1 |
1000 |
1200 |
100 |
250 |
741020 |
50 |
16.5 |
20 |
23 |
13 |
9.5 |
1.5 |
2.5 |
1500 |
2300 |
150 |
500 |
741026 |
60 |
20.5 |
24 |
27 |
13 |
10.5 |
1.5 |
2.5 |
2000 |
3800 |
220 |
700 |
