AL TYPE TOLERANCE RINGS (13mm - 52mm):

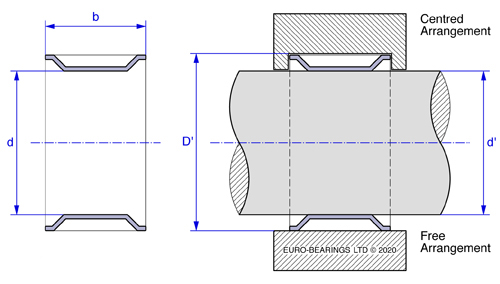

These AL tolerance rings are thinner than the AN type and are designed for lighter duty bearings. The housing diameter is varied (HVL) to achieve the correct tolerance. These AL tolerance ring are curved rather than circular prior to fitting.
 |
 |
Tolerance Ring Reference |
d |
b |
Bearing Part Number |
OD of Bearing |
HOUSING BORE |
WORKING |
PERMISSIBLE |
AL13-505 |
13 |
5 |
624 |
13 |
13.60 to 13.65 |
5 |
125 |
AL16-505 |
16 |
5 |
625 |
16 |
16.60 to 16.65 |
5 |
150 |
AL19-506 |
19 |
6 |
626 |
19 |
19.60 to 19.65 |
6 |
220 |
AL22-507 |
22 |
7 |
608 |
22 |
22.60 to 22.65 |
7 |
300 |
AL24-507 |
24 |
7 |
609 |
24 |
24.60 to 24.65 |
7 |
330 |
AL26-508 |
26 |
8 |
629 |
26 |
26.60 to 26.65 |
8 |
400 |
AL28-508 |
28 |
8 |
6001 |
28 |
28.60 to 28.65 |
8 |
440 |
AL30-509 |
30 |
9 |
6200 |
30 |
30.60 to 30.65 |
9 |
520 |
AL32-508 |
32 |
8 |
16002 |
32 |
32.60 to 32.65 |
8 |
500 |
AL32-509 |
32 |
9 |
6002 |
32 |
32.60 to 32.65 |
9 |
560 |
AL32-510 |
32 |
10 |
6201 |
32 |
32.60 to 32.65 |
10 |
620 |
AL35-510 |
35 |
10 |
6003 |
32 |
35.60 to 35.65 |
10 |
750 |
AL35-515 |
35 |
15 |
6202 |
35 |
35.60 to 35.65 |
15 |
1050 |
AL52-515 |
52 |
15 |
6205 |
52 |
52.60 to 52.65 |
15 |
1600 |
