CORRUGATOR BEARINGS

Corrugator bearings are large cyclindrical roller bearings that support heavy rollers in the making of kraft paper into corrugated card for the production of cartons etc. Scroll to bottom for details of all the corrugator bearings we can supply or select the Machine from the right hand menu.

Our corrugator bearings are made from the following materials:

Bearing Rings: Chrome Steel UNI 100 Cr6 hardened to HRC 58 (+2 /-0) Stabilised at 250 C

Rollers: Chrome Steel UNI 100 Cr6 hardened to HRC 58-65

Cage: Machined Steel or Brass

Precision Level: ISO P6 for boundary dimensions and inner ring roundness

The table below is a full list of corrugator bearings sorted alphabetically by the Corrugator Machine Manufacturer. If you prefer to view the bearings by machine manufacturer, please select the brand name.

Agnati Blondel Koppers Langston
Martin Massenzana Medesa MHI
Peters Simon S & S TCY



bearings for corrugator machines

A simplified drawing of the corrugation process





CORRUGATOR MODEL EURO PART NO d(mm) d(in) D(mm) D(in B(mm) B(in)
AGNATI G012

2.0046 &

2.0046 GZZ

 127 5.0 184.15 7.25 127.1 5.004
BLONDEL 3401 2.0206 141.02 5.552 203 7.992 144 5.669
BLONDEL 3401 2.0206/A 141.02 5.552 203 7.992 164 6.457
KOPPERS 200

2.0199 &

2.0199 GZZ

 126.91 4.996 196.85 7.75 152.4 6.0
KOPPERS 200

2.0200 &

2.0200 GZZ

 126.91 4.996 203.2 8.0 152.4 6.0
KOPPERS 200 2.0256 101.6 4.0 152.4 6.0 101.6 4.0
LANGSTON XD/280 2.2000 & 2.2000 GZZ 127 5.0 184.15 7.25 114.3 4.5
LANGSTON XD/280 2.2001 & 2.2001 GZZ 127 5 184.15 7.25 101.675 4.003
LANGSTON XD/380SF/280 2.0501 126.987 4.999 215.9 8.5 61.9 2.437
LANGSTON XD/380SF/280 2.0502 126.987 4.999 215.9 8.5 61.9 2.437
LANGSTON XA 2.0256 101.6 4 152.4 6 101.6 4
LANGSTON 101/102 2.1247 95 3.74 170 6.693 55.56 2.1875
LANGSTON 101/102 2.1248 95 3.74 170 6.693 69.85 2.75
LANGSTON 450 2.3146 126.987 4.9995 241.3 9.5 107.95 4.25
LANGSTON 450 2.3147 126.987 4.9995 241.3 9.5 107.95 4.25
LANGSTON 450 2.3146A 126.987 4.9995 241.3 9.5 107.95 4
LANGSTON 450 2.3147A 126.987 4.9995 241.3 9.5 107.95 4
MARTIN 188 2.0012 120 4.724 215 8.465 130 5.118
MARTIN 260 2.0009/A 135 5.315 210 8.268 140 5.512
MASSENZANA OC200 2.1259 118 4.646 200 7.874 110 4.331

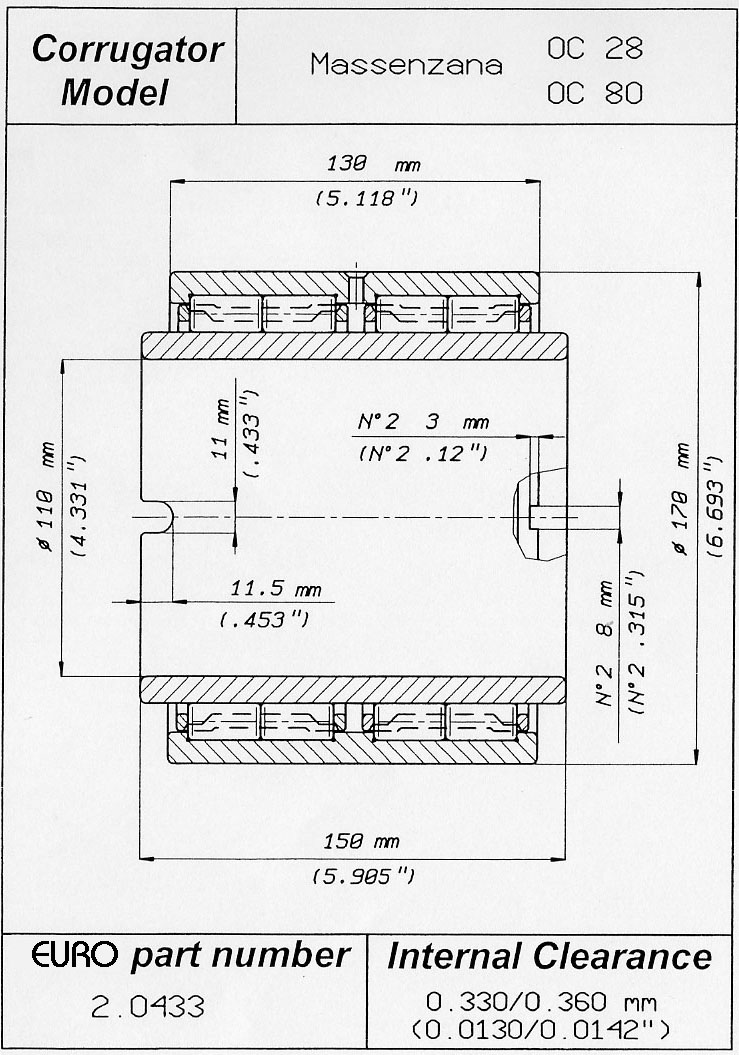

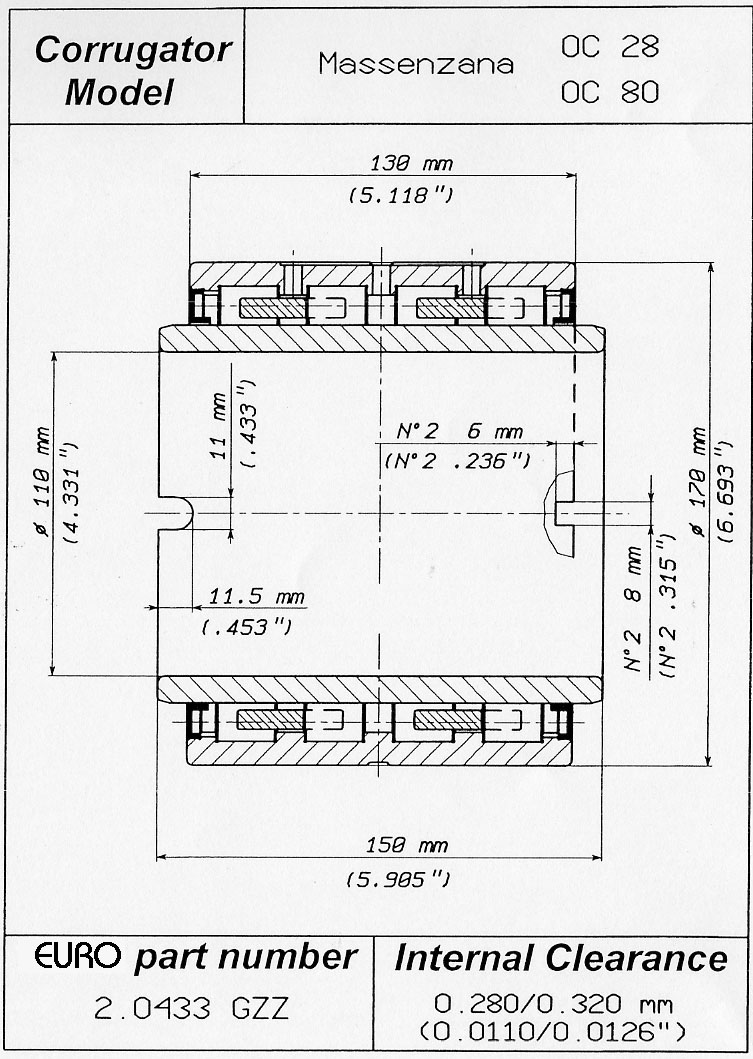

MASSENZANA OC28/OC80 2.0433 & 2.0433 GZZ 110 4.331 170 6.693 150 5.905
MASSENZANA OC300 GEM 2.1899 150 5.906 250 9.843 100 3.937
MASSENZANA OC300 GEM 24130 CC K30/C4 150 5.906 250 9.843 100 3.937
MEDESA 250 2.0199 & 2.0199 GZZ 126.91 4.996 196.85 7.75 152.4 6
MEDESA 250 2.0200 & 2.0200 GZZ 126.91 4.996 203.2 8 152.4 6
MEDESA 2.2024 170 6.693 280 11.024 109 4.291
MEDESA 24134 CC K30/C4 170 6.693 280 11.024 109 4.291
MHI 50, 60 PASER 150 5.906 250 9.843 100 3.937
MHI 50, 60 PASER 150 5.906 250 9.843 100 3.937
MHI 60 PASER G 2.2014 180 7.087 330 12.992 127 5.0
MHI 60 PASER G 2.2015 180 7.087 330 12.992 120 4.724
MHI 60 PASER H 2.2981 160 6.299 340 13.386 114 4.488
MHI 60 PASER H 2.2982 160 6.299 340 13.386 114 4.488
PETERS COMPACT STAR 2.2000 & 2.2000 GZZ 127 5.0 184.15 7.25 114.3 4.5
PETERS COMPACT STAR 2.2001& 2.2001 GZZ 127 5.0 184.15 7.25 101.675 4.003
PETERS COMPACT STAR 2.0501 126.987 4.999 215.9 8.5 61.9 2.437
PETERS COMPACT STAR 2.0502 126.987 4.999 215.9 8.5 61.9 2.437
PETERS MULTI/SINGLE STAR 2.2022 170 6.693 260 10.236 115 4.528

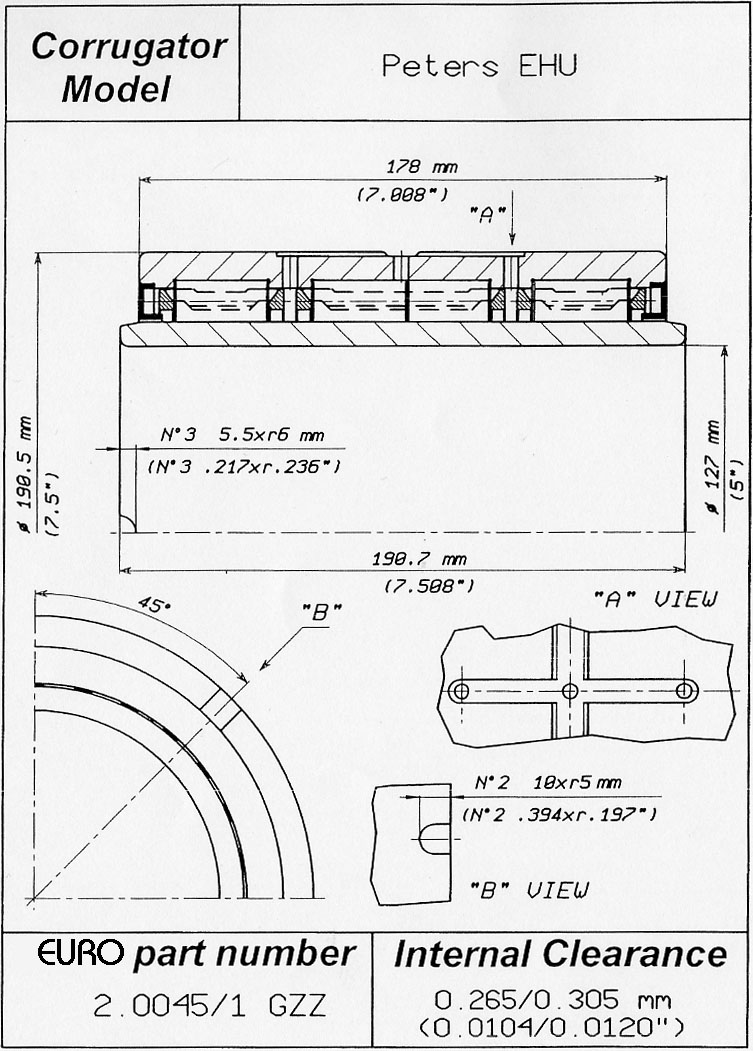

PETERS EHU 2.0045/1 & 2.0045/1 GZZ 127 5 190.5 7.5 190.7 7.508
PETERS 2.1708 115 4.528 165 6.496 115 4.528
PETERS 2.2003 127 5 184.2 7.252 164 6.457
PETERS 2.2970 159.94 6.2969 260 10.236 110 4.3307
SIMON 245 2.0199 & 2.0199 GZZ 126.91 4.996 196.85 7.75 152.4 6.0
SIMON 245 2.0200 & 2.0200 GZZ 126.91 4.996 203.2 8.0 152.4 6.0
SIMON 245 2.0986 49.213 1.937 84.163 3.313 76.2 3.0
SIMON 245 2.0995 61.913 2.437 100.038 3.938 76.2 3.0
SIMON 245 2.0996 88.887 3.499 133.3 5.248 88.9 3.5
SIMON 245 2.0256 101.6 4.0 152.4 6.0 101.6 4.0
SIMON 300 PSF 2.2002 & 2.2002 GZZ 150 5.906 240 9.449 170 6.693

S & S 2 HKD 268 A / 2 HKE 268 A

2.0046 & 2.0046 GZZ 127 5.0 184.15 7.25 127.1 5.004
S & S 2 HKD 268 A / 2 HKE 268 A 2.0328 127 5.0 184.15 7.25 127.1 5.004
S & S 2 HKD 268 A / 2 HKE 268 A 2.0099 101.6 4.0 152.4 6.0 127 5.0
S & S 2 HKA 268 A 2.0256 101.6 4.0 152.4 6.0 101.6 4.0
TCY 2.1899 150 5.906 250 9.843 100 3.937
