HOME > CORRUGATOR BEARINGS > LANGSTON
CORRUGATOR BEARINGS for Langston Corrugating Machines:
Corrugator bearings are large cyclindrical roller bearings that support heavy rollers in the making of kraft paper into corrugated card for the production of cardboard boxes.
The below roller bearings are replacement parts for Langston corrugating machines.
| CORRUGATOR MODEL | EURO PART NO | d(mm) | d(in) | D(mm) | D(in | B(mm) | B(in) |
| LANGSTON XD/280 | 2.2000 & 2.2000 GZZ | 127 | 5.0 | 184.15 | 7.25 | 114.3 | 4.5 |

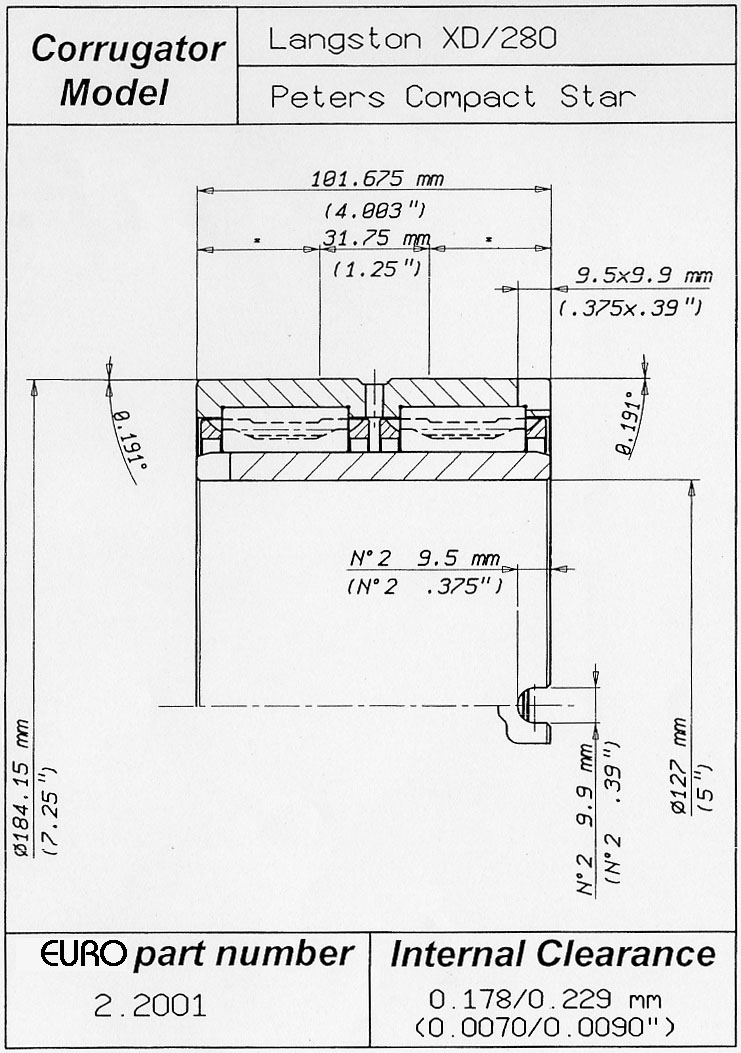

| LANGSTON XD/280 | 2.2001 & 2.2001 GZZ | 127 | 5 | 184.15 | 7.25 | 101.675 | 4.003 |
| LANGSTON XD/380SF/280 | 2.0501 | 126.987 | 4.999 | 215.9 | 8.5 | 61.9 | 2.437 |
| LANGSTON XD/380SF/280 | 2.0502 | 126.987 | 4.999 | 215.9 | 8.5 | 61.9 | 2.437 |
| LANGSTON XA | 2.0256 | 101.6 | 4 | 152.4 | 6 | 101.6 | 4 |
| LANGSTON 101/102 | 2.1247 | 95 | 3.74 | 170 | 6.693 | 55.56 | 2.1875 |
| LANGSTON 101/102 | 2.1248 | 95 | 3.74 | 170 | 6.693 | 69.85 | 2.75 |
| LANGSTON 450 | 2.3146 | 126.987 | 4.9995 | 241.3 | 9.5 | 107.95 | 4.25 |
| LANGSTON 450 | 2.3147 | 126.987 | 4.9995 | 241.3 | 9.5 | 107.95 | 4.25 |
| LANGSTON 450 | 2.3146A | 126.987 | 4.9995 | 241.3 | 9.5 | 107.95 | 4 |
| LANGSTON 450 | 2.3147A | 126.987 | 4.9995 | 241.3 | 9.5 | 107.95 | 4 |
