CORRUGATOR BEARINGS for Simon Corrugating Machines:
Corrugator bearings are large cyclindrical roller bearings that support heavy rollers in the making of kraft paper into corrugated card for the production of cardboard boxes.
The below roller bearings are replacement parts for Simon corrugating machines.
| CORRUGATOR MODEL | EURO PART NO | d(mm) | d(in) | D(mm) | D(in | B(mm) | B(in) |
| SIMON 245 | 2.0199 & 2.0199 GZZ | 126.91 | 4.996 | 196.85 | 7.75 | 152.4 | 6.0 |

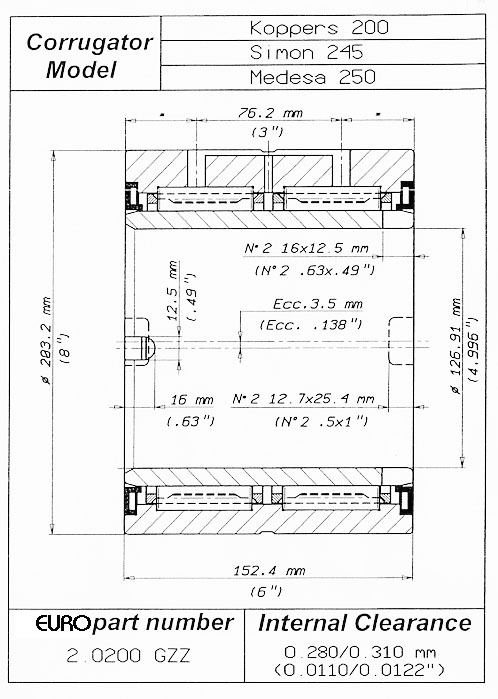

| SIMON 245 | 2.0200 & 2.0200 GZZ | 126.91 | 4.996 | 203.2 | 8.0 | 152.4 | 6.0 |

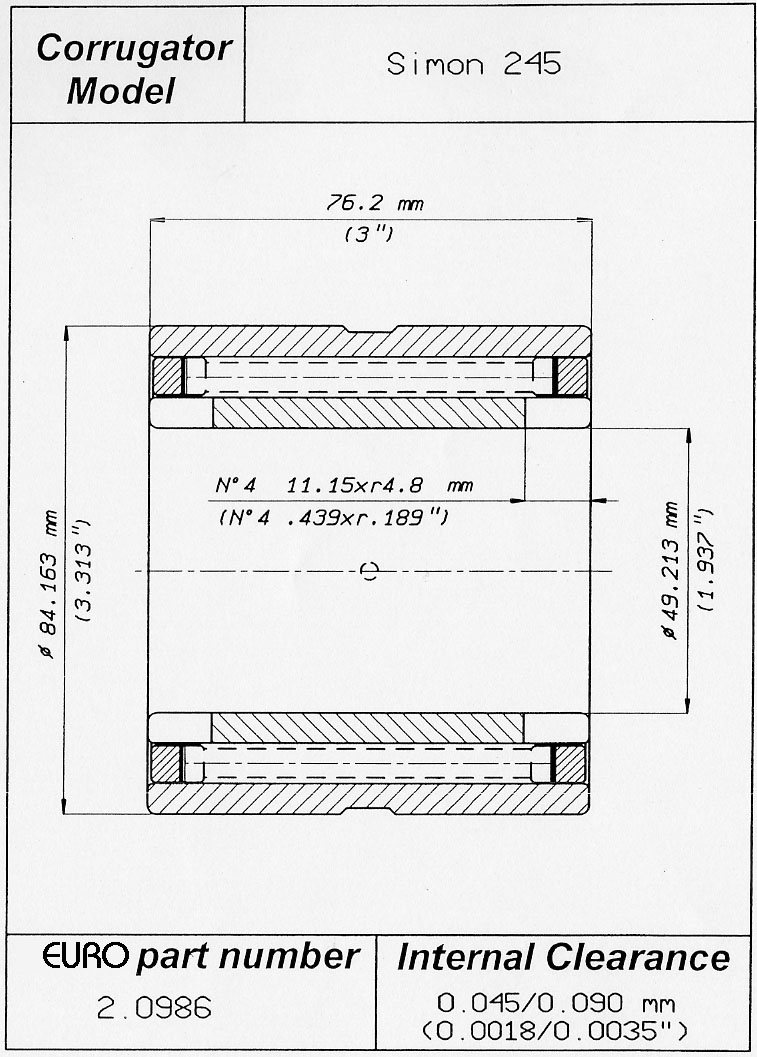

| SIMON 245 | 2.0986 | 49.213 | 1.937 | 84.163 | 3.313 | 76.2 | 3.0 |
| SIMON 245 | 2.0995 | 61.913 | 2.437 | 100.038 | 3.938 | 76.2 | 3.0 |
| SIMON 245 | 2.0996 | 88.887 | 3.499 | 133.3 | 5.248 | 88.9 | 3.5 |
| SIMON 245 | 2.0256 | 101.6 | 4.0 | 152.4 | 6.0 | 101.6 | 4.0 |
| SIMON 300 PSF | 2.2002 & 2.2002 GZZ | 150 | 5.906 | 240 | 9.449 | 170 | 6.693 |
