CORRUGATOR BEARINGS for Peters Corrugating Machines:
Corrugator bearings are large cyclindrical roller bearings that support heavy rollers in the making of kraft paper into corrugated card for the production of cardboard boxes.
The below roller bearings are replacement parts for Peters corrugating machines.
| CORRUGATOR MODEL | EURO PART NO | d(mm) | d(in) | D(mm) | D(in | B(mm) | B(in) |
| PETERS COMPACT STAR | 2.2000 & 2.2000 GZZ | 127 | 5.0 | 184.15 | 7.25 | 114.3 | 4.5 |
| PETERS COMPACT STAR | 2.2001& 2.2001 GZZ | 127 | 5.0 | 184.15 | 7.25 | 101.675 | 4.003 |
| PETERS COMPACT STAR | 2.0501 | 126.987 | 4.999 | 215.9 | 8.5 | 61.9 | 2.437 |
| PETERS COMPACT STAR | 2.0502 | 126.987 | 4.999 | 215.9 | 8.5 | 61.9 | 2.437 |
| PETERS MULTI/SINGLE STAR | 2.2022 | 170 | 6.693 | 260 | 10.236 | 115 | 4.528 |

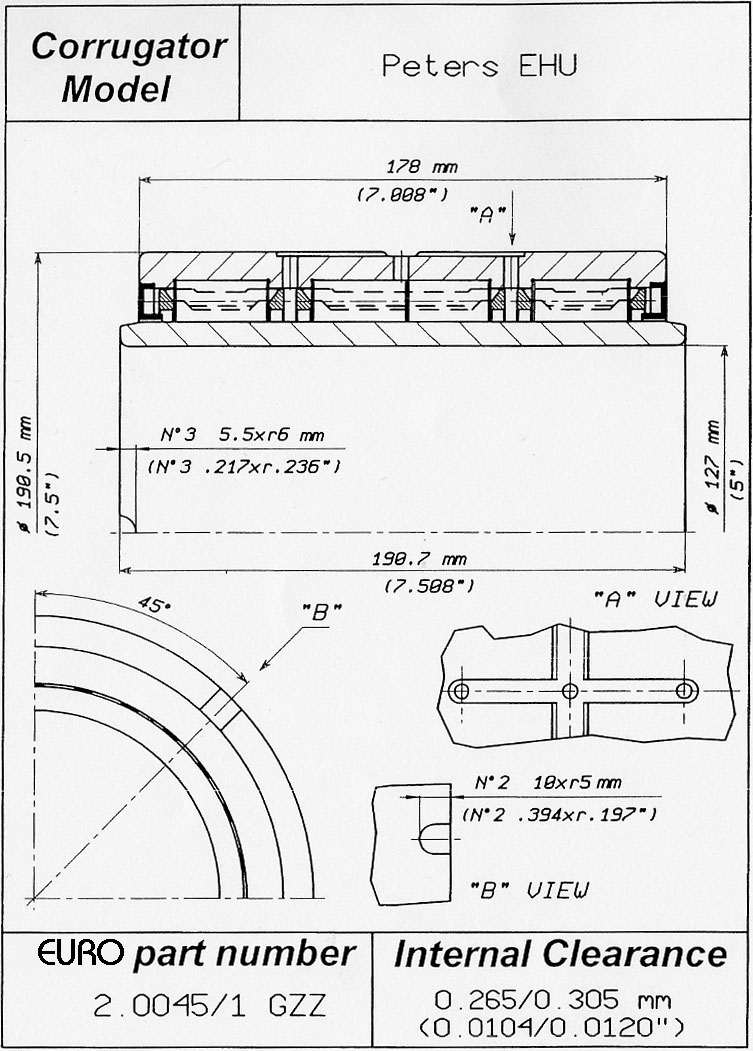

| PETERS EHU | 2.0045/1 & 2.0045/1 GZZ | 127 | 5 | 190.5 | 7.5 | 190.7 | 7.508 |
| PETERS | 2.1708 | 115 | 4.528 | 165 | 6.496 | 115 | 4.528 |
| PETERS | 2.2003 | 127 | 5 | 184.2 | 7.252 | 164 | 6.457 |
| PETERS | 2.2970 | 159.94 | 6.2969 | 260 | 10.236 | 110 | 4.3307 |
